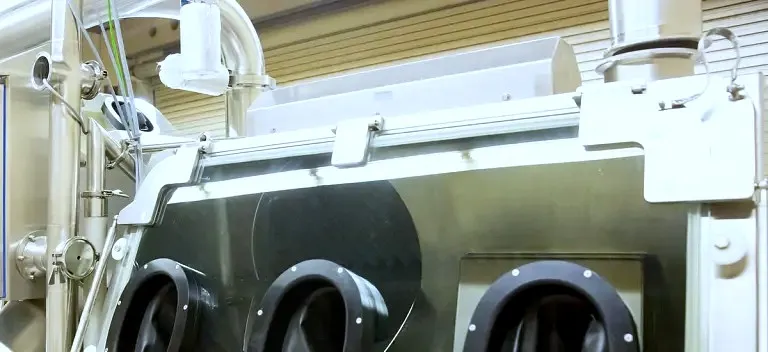

Pharma isolator with glove ports – containment components in stainless steel

Containment Components in Stainless Steel – for High-Potency APIs

Name: Numberger Technologies
Address: Muehlberg 4, St. Wolfgang, Bayern, 84427, DE
Telephone: +49 8085 1899-0

Isolator housings, transfer systems and valves – crevice-free, pore-free, fully documented.

✓ Isolator housings, valves, slides in 1.4404 / 316L
✓ Surface finish down to Ra 0.4 µm – electropolished
✓ Crevice-free, pore-free, dead-zone-free – TIG purged
✓ Split butterfly valve components
✓ Transfer containers and port systems
✓ Material certificates 3.1 to EN 10204
✓ Full batch traceability
✓ AD 2000 HP0 + ISO 3834-2 certified

EN 1090-2

EXC2 – Tragende Konstruktionen

ISO 9001

Qualitätsmanagement

ISO 3834-2

Schweisstechnik – höchste Stufe

AD 2000 HP0

Druckgeräte – TÜV-überwacht

Supplier to containment manufacturers – not a competitor

Containment systems protect operators from high-potency active pharmaceutical ingredients (HPAPI). The stainless steel components within must meet the highest standards: crevice-free, pore-free, dead-zone-free – with surfaces that can be cleaned without residue.

Numberger Technologies manufactures these components as a supplier to containment system builders. We don't build isolators – we deliver the stainless steel assemblies that go inside them. Precisely to drawing, documented down to the heat number.

Strict separation of stainless steel and carbon steel in production. TIG welded, purged and full-penetration. Own surface roughness tester with printout for Ra verification directly on the part.

Typical Components

• Isolator housings and frames

• Split butterfly valve components

• Transfer containers and systems

• Funnels, flaps, slides

• Glove port frames

• Sealing surfaces and flanges

• CIP/WIP/SIP-capable assemblies

• Claddings and covers

Materials in Stock

Material No.	Short Name	Application
1.4404	316L	Standard pharma containment – high corrosion resistance
1.4539	904L	Aggressive media – highest resistance
1.4571	316Ti	High-temperature applications

Location

St. Wolfgang near Munich, Bavaria – 30 minutes east of Munich. Family-owned since 1928. Over 2,400 customers across Europe.

Send Your Drawing, Receive a Quote

Enquire by email or phone – quote within 48 hours.

Send drawing +49 8085 1899-0

Send inquiry

Or contact us directly

Phone

+49 8085 1899-0

info@nb-t.de

Address

Numberger Technologies
Mühlberg 4
84427 St. Wolfgang
Oberbayern

Quote within 48 hours.
Send drawing via form or email.

Frequently Asked Questions

What is containment in the pharmaceutical industry?

Containment protects operators from high-potency APIs (HPAPI). Typical systems include isolators with glove ports, split butterfly valves for dust-free transfer, and closed process equipment. All stainless steel components must be crevice-free and cleanable.

What surface finish do containment components require?

Standard is Ra 0.8 µm. For OEB 4-5 applications, often Ra 0.4 µm or better. We grind, polish and electropolish – with our own surface roughness tester and measurement protocol printed on-site.

Can you manufacture to our drawings?

Yes. We manufacture to drawings, STEP files or specifications. From prototype to series. Material certificates 3.1 and batch traceability are standard.

Which stainless steel for containment?

1.4404 (316L) is the standard for pharma containment. For aggressive media we use 1.4539 (904L). Both materials in stock.

Do you supply containment manufacturers?

Yes. We are a supplier, not a competitor. We manufacture the stainless steel components that are installed in isolators, transfer systems and containment lines.
